We are Importer Woven Sack/Leno Bag Machine

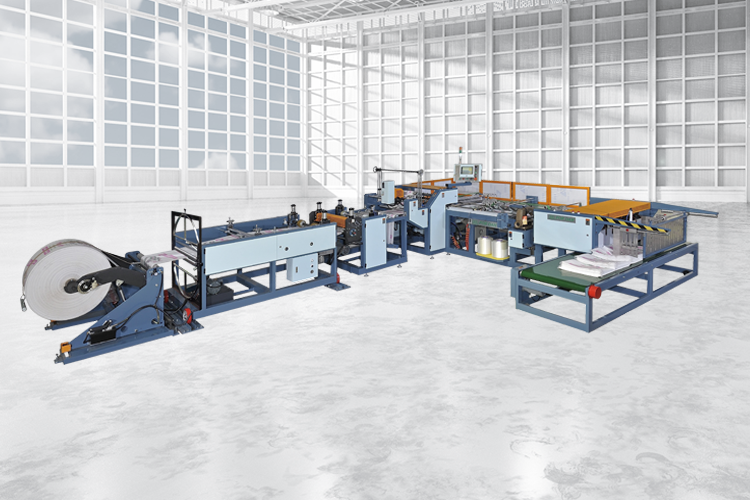

BWC Fully Automatic Leno Bag Making Machine
Product Specification
Brand BWC
Machine Type Fully Automatic
Production Capacity 30-40 Bag/Minute (depending upon the bag size)
Bag Material PP, HDPE, LENO, BOPP
Folding Device Single & Double Fold
Size of Machine 17' X 17' X 5' feet
Operational Equipments Power Supply 440 Volts, 3 Phase, 50 C/S 5 HP Air Compressor
Cutting Length 500 to 1300 mm Adjustable
Stitching Unit High Speed - 3500 rpm (Two Row Stitching)
Diameter of Unwinding Cloth 1200 mm Maximum
Width of Unwinding Cloth 300 to 850 mm Maximum
Cutting Length Accuracy +/- 1 mm
Driven Motor 2 KW Servo Motor
Distance Between Two Needles 7 mm
Stitching Range 11-14 mm
Stitching Machine Driven Motor 0.75 KW 3ph DC Induction Motor
